Honda Motorbikes
Honda Dream 125
The
ubiquitous Dream is semi-automatic: automatic clutch with 4
gears.
| Engine | 4 Stroke, Overhead Camshaft, Air Cooled | |
| Cylinder Capacity | 124.9 CC. | |
| Bore x Stroke | 52.4 x 57.9 MM. | |
| Engine Start Type | Kick Start Model / Kick and Electric Start Model | |
| Compression Ratio | 9.3 : 1 | |
| Transmission | Rotary 4 Speed | |
| Dimension (W x L x H) | 705 x 1,865 x 1,045 MM. | |
| Wheel Base | 1,200 MM. | |
| Dry Weight | Kick Start | 93.5 Kgs. |
| Electric Start | 95.5 Kgs. | |
| Ignition | CDI | |
| Tyre Size | Front | 60 / 100 - 17 M/C 33P |
| Rear | 70 / 100 - 17 M/C 40P | |
| Battery | Kick Start | Dry Battery 12 V. - 2.5 Ah |
| Electric Start | Dry Battery 12 V. - 3.5 Ah | |
| Fuel Tank Capacity | 4.0 Litrs | |
| Fuel Type | Unleaded Gasoline Octane 91 Up | |
| Coat Type | ED Coat (Electrical) | |
| Emission Standard | Under Level 5 | |
| Engine Oil Change Time | Every 8,000 Kms | |
Honda Wave
Honda Wave series is called Honda NF series in some markets and marketed as Honda Innova in Europe. It is no surprise that it is world's best selling small motorcycle (moped) as it replaces Honda Cub series which in own turn was world's most popular moped. It debuted in 1995 especially for Asian and European market. Honda Wave uses steel tubes for the frames and plastic cover sets for the body in contrast to its predecessor Honda Cubs which used pressed steel frame.
Honda Wave comes with three displacement options - 100cc, 110cc and 125cc. In addition to the three models that uses carburetors, Honda also produces the fuel-injected 125cc model known as Honda Wave 125i, the first kapchai model that uses fuel injection.
These are its features:
- Under-seat storage compartment (known as U-box by Honda)
- Front disc brake (standard for 125cc model; optional for 100cc and 110 cc model)
- Roller-bearing rocker arms to reduce friction at the rocker arms (125cc model only)
- Heavy-duty ceramic coated piston (125cc model only)
- Fuel injection (Wave 125i only)
- Digital odometer and fuel tank (standard for 125cc
model in
Thailand)

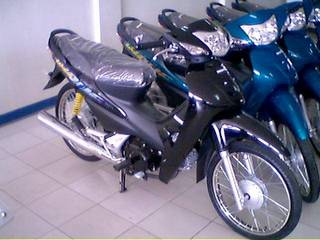

Honda Wave 100
Honda Wave 100 is world's best selling motorbike.
| Engine | 4 Stroke, OHC, Air Cooled | |
| Cylinder Capacity | 97 CC. | |
| Bore x Stroke | 50.0 x 49.5 MM. | |
| Engine Start Type | Kick Start Model / Kick and Electric Start Model | |
| Compression Ratio | 9.0 : 1 | |
| Transmission | Rotary 4 Speed | |
| Dimension (W x L x H) | 715 x 1,870 x 1,050 MM. | |
| Wheel Base | 1,208 MM. | |
| Dry Weight | Kick Start | 91.5 Kgs. |
| Electric Start | 93.5 Kgs. | |
| Ignition | CDI | |
| Tyre Size | Front | 60 / 100 - 17 M/C 33P |
| Rear | 70 / 90 - 17 M/C 43P | |
| Battery | Kick Start | Dry Battery 12 V. - 2.5 Ah |
| Electric Start | Dry Battery 12 V. - 3.5 Ah | |
| Fuel Tank Capacity | 4.0 Litrs | |
| Fuel Type | Unleaded Gasoline Octane 91 Up | |
Honda Wave 100 and Wave 100S
| Model |
Wave 100
|
Wave 100 S
|
|
| Engine |
4 Stroke, OHC, Air Cooled
|
||
| Cylinder Capacity |
97.1 CC.
|
||
| Bore x Stroke |
50.0 x 49.5 MM.
|
||
| Engine Start Type |
Kick Start and Electric Start Model
|
||
| Compression Ratio |
9.0 : 1
|
||
| Transmission |
Rotary 4 Speed
|
||
| Dimension (W xL x H) |
697 x 1,898 x 1,057 MM.
|
||
| Wheel Base |
1,234 MM.
|
||
| Dry Weight | Kick Start |
NF100K 91 Kgs.
|
NF100R 92 Kgs.
|
| Electric Start |
NF100MK 93 Kgs.
|
NF100MR 94 Kgs. |
|
| Ignition |
CDI
|
||
| Brake Type | Front |
Drum Brake
|
Disc Brake
|
| Rear |
Drum Brake
|
||
| Tyre Size | Front |
60 / 100 - 17 M/C 33P
|
|
| Rear |
70 / 90 - 17 M/C 43P
|
||
| Battery | Kick Start |
Dry Battery 12 V. - 2.5 AH
|
|
| Electric Start |
Dry Battery 12 V. - 3.5 AH
|
||
| Fuel Tank Capacity |
4.0 Litrs
|
||
| Fuel Type |
Unleaded Gasoline Octane 91 Up
|
||
Honda Wave Z
| Model |
Drum Brake
NF 100 T (B) |
Disc Brake
NF 100 P |
|
| Engine |
4 Stroke, OHC, Air Cooled
|
||
| Cylinder Capacity |
97 CC.
|
||
| Bore x Stroke |
50.0 x 49.5 MM.
|
||
| Engine Start Type |
Kick Start
|
||
| Compression Ratio |
9.0 : 1
|
||
| Ignition |
CDI
|
||
| Clutch Type |
Manual Clutch, Multiple Wet Disk
|
||
| Transmission |
Rotary 4 Speed
|
||
| Dimension (W x L x H) |
715 x 1,870 x 1,050 MM.
|
||
| Wheel Base |
1,208 MM.
|
||
| Dry Weight |
88 Kgs.
|
89 Kgs.
|
|
| Brake Type | Front |
Drum Brake
|
Disc Brake
|
| Rear |
Drum Brake
|
Drum Brake
|
|
| Tyre Size | Front |
60 / 100 - 17 M/C 33P
|
|
| Rear |
70 / 90 - 17 M/C 43P
|
||
| Battery |
MF (Dry Battery) 12 V. - 2.5 AH
|
||
| Fuel Tank Capacity |
4.0 Litrs
|
||
| Fuel Type |
Unleaded Gasoline Octane 91 Up
|
||
Honda Wave 125
Honda Wave 125
- Engine type: SOHC 2-valve 4-stroke air-cooled 124cc engine
- Displacement (Cylinder Capacity): 124.9 cc
- Compression Ratio: 9.3:1
- Bore x Stroke: 52.4 x 57.9 mm
- Dimension (W x L x H): 715 x 1,870 x 1,050 MM.
- Max Power: 10.1 PS @ 9,500 rpm
- Max speed: 136 km/h
- Transmission: Rotary 4-speed
- Clutch: Wet multi-plate centrifugal
- Starter: Kick and electric starter
- Frame Type: Underbone steel tube
- Suspension (F): Telescopic
- Suspension (R): Swingarm
- Wheelbase: 1,205 mm
- Ignition: CDI
- Brake (F): Disc
- Brake (R): Leading trailing drum
- Fuel tank capacity: 3.7 L
- Fuel Type: Unleaded Gasoline Octane 91 Up
- Fuel system: Honda PGM-FI (Wave 125i and 2007 Honda Innova 125 only); carburetors (all other models)
| Dry Weight | NF 125 Kick Start | 92.5 Kgs. |
| NF 125M Electric Start | 94.5 Kgs. | |
| Tyre Size | Front | 60 / 100 - 17 M/C 33P |
| Rear | 70 / 90 - 17 M/C 43P | |
| Battery | NF 125 Kick Start | Dry Battery 12 V. - 2.5 Ah |
| NF 125M Electric Start | Dry Battery 12 V. - 3.5 Ah |
Honda Wave 125i
The "i" stands for fuel injection as this is the only kapchai or moped model that uses fuel injection instead of a carburetor.
| Engine |
4 Stroke, OHC, Air Cooled
|
|
| Cylinder Capacity |
124.9 CC.
|
|
| Dispense Fuel Type |
Fuel Injection PGM-FI, Computer Control
|
|
| Bore x Stroke | 52.4 x 57.9 MM. | |
| Engine Start Type |
Kick Start Model / Kick and Electric Start Model
|
|
| Compression Ratio | 9.3 : 1 | |
| Transmission |
Rotary 4 Speed
|
|
| Dimension (W x L x H) |
706 x 1,881 x 1,082 MM.
|
|
| Wheel Base |
1,239 MM.
|
|
| Dry Weight | NF 125 C Kick Start Model | 97 Kgs. |
| NF 125 MC Kick And Electric Start Model | 99 Kgs. | |
| Ignition | CDI | |
| Brake Type | Front | Disc Brake Dual Piston Caliper |
| Rear | Drum Brake | |
| Tyre Size | Front | 60 / 100 - 17 M/C 33P |
| Rear | 70 / 90 - 17 M/C 43P | |
| Battery | NF 125 C Kick Start Model | Dry Battery 12 V. - 2.5 AH |
| NF 125 MC Kick and Electric Start Model | Dry Battery 12 V. - 3.5 AH | |
| Fuel Tank Capacity | 4.0 Litrs | |
| Fuel Type | Unleaded Gasoline Octane 91 Up | |
Honda Wave 125R
| Model |
Drum Brake
|
Disc Brake
|
|
| Engine |
4 Stroke, OHC, Air Cooled
|
||
| Cylinder Capacity |
124.9 CC.
|
||
| Bore x Stroke |
52.4 x 57.9 MM.
|
||
| Engine Start Type |
Kick Start
|
Kick and Electric Start
|
|
| Compression Ratio |
9.3 : 1
|
||
| Transmission |
Rotary 4 Speed
|
||
| Dimension (W x L x H) |
715 x 1,870 x 1,050 MM.
|
||
| Wheel Base |
1,205 MM.
|
||
| Dry Weight | Kick Start |
NF 125 K (B) 92.5 Kgs.
|
NF 125 P (B) 93.5 Kgs.
|
| Electric Start |
-
|
NF 125 MP (B) 95.5 Kgs.
|
|
| Ignition |
CDI
|
||
| Brake Type | Front |
Drum Brake |
Disc Brake (Dual Piston Caliper)
|
| Rear |
Drum Brake
|
||
| Tyre Size | Front |
60 / 100 - 17 M/C 33P
|
|
| Rear |
70 / 90 - 17 M/C 43P
|
||
| Battery | Kick Start |
Dry Battery 12 V. - 2.5 AH
|
|
| Electric Start |
Dry Battery 12 V. - 3.5 AH
|
||
| Fuel Tank Capacity |
4.0 Litrs
|
||
| Fuel Type |
Unleaded Gasoline Octane 91 Up
|
||
Honda Wave 125S
| Engine | 4 Stroke, OHC, Air Cooled | |
| Cylinder Capacity | 124.9 CC. | |
| Bore x Stroke | 52.4 x 57.9 MM. | |
| Engine Start Type | Kick Start Model / Kick and Electric Start Model | |
| Compression Ratio | 9.3 : 1 | |
| Transmission | Rotary 4 Speed | |
| Dimension (W x L x H) | 703 x 1,881 x 1,060 MM. | |
| Wheel Base | 1,239 MM. | |
| Dry Weight | NF 125T Kick Start | 97 Kgs. |
| NF 125MT Electric Start | 98 Kgs. | |
| Ignition | CDI | |
| Brake Type | Front | Disc Brake (Dual Piston Caliper) |
| Rear | Drum Brake | |
| Tyre Size | Front | 60 / 100 - 17 M/C 33P |
| Rear | 70 / 90 - 17 M/C 43P | |
| Battery | Kick Start | Dry Battery 12 V. - 2.5 Ah |
| Electric Start | Dry Battery 12 V. - 3.5 Ah | |
| Fuel Tank Capacity | 4.0 Litrs | |
| Fuel Type | Unleaded Gasoline Octane 91 Up | |
Honda Nice 125 S and 125 RS
| Model |
NICE 125 S
ZN 125 (A) |
NICE 125 RS
ZN 125 TS (A) |
|
| Engine |
4 Stroke, OHC, Air Cooled
|
||
| Cylinder Capacity |
124.9 CC.
|
||
| Bore x Stroke |
52.4 x 57.9 MM.
|
||
| Compression Ratio |
9.3 : 1
|
||
| Ignition |
CDI
|
||
| Transmission |
4 Speed
|
||
| Clutch Type |
Manual Clutch
|
||
| Dimension (W x L x H) |
670 x 1,870 x 970 MM.
|
||
| Wheel Base |
1,220 MM.
|
||
| Dry Weight |
93.5 Kgs.
|
95.5 Kgs.
|
|
| Suspension | Front |
Telecospic
|
|
| Rear |
Dual Shock Absorbers
|
||
| Brake Type | Front |
Disc Brake
|
Disc Brake
|
| Rear |
Drum Brake
|
Disc Brake
|
|
| Tyre Size | Front |
2.25 - 17 33L
|
|
| Rear |
2.50 - 17 38L
|
||
| Fuel Tank Capacity |
4.0 Litrs
|
||
| Fuel Type |
Unleaded Gasoline Octane 91 Up
|
||
| Battery |
Dry Battery 12 V. - 2.5 AH
|
||
Honda Nova SOnic
|
Model
|
Sonic RS
|
Sonic RS Super
|
|||
|
Electric Start
|
Kick Start
|
Electric Start
|
Kick Start
|
||
| Engine |
4 Stroke, OHC, Water Cooled
|
||||
| Cylinder Capacity |
124.7 CC.
|
||||
| Bore x Stroke |
58 x 47.2 MM.
|
||||
| Compression Ratio |
11.0 : 1
|
||||
| Transmission |
5 Speed
|
||||
| Clutch Type |
Manual Clutch
|
||||
| Dimension (W x L x H) |
660 x 1,900 x 970 MM.
|
||||
| Wheel Base |
1,250 MM.
|
||||
| Dry Weight |
102.5 Kgs.
|
101.5 Kgs. |
102.0 Kgs.
|
101.0 Kgs. | |
| Suspension | Front |
Telecospic
|
|||
| Rear |
Mono Shock
|
||||
| Brake Type | Front |
Disc Brake
|
|||
| Rear |
Disc Brake
|
||||
| Tyre Size | Front |
60 / 100 - 17M / C 33P
|
|||
| Rear |
80 / 90 - 17M / C 44P
|
||||
| Battery |
Dry Battery
12 V.-3.5 AH |
Dry Battery
12 V.-2.5 AH |
Dry Battery
12 V.-3.5 AH |
Dry Battery
12 V.-2.5 AH |
|
| Fuel Tank Capacity |
4.2 Litrs
|
||||
| Fuel Type |
Unleaded Gasoline Octane 91 Up
|
||||
HOnda CBR-150R
| Engine |
4 Stroke, DOC 4 Valves, Water Cooled |
| Cylinder Capacity | 149.4 CC. |
| Bore x Stroke | 63.5 x 47.2 MM. |
| Compression Ratio | 11 : 1 |
| Engine Start Type | Electric Start |
| Ignition | CDI Direct |
| Sparking Plug | CR8E (NGK) or U24ESR-N (DENSO) |
| Transmission | 6 Speeds |
| Clutch Type | Wet, Multiple Disk |
| Gear Ratio 1 2 3 4 5 6 |
3.038 1.941 1.500 1.227 1.041 0.923 |
| Primary Gear Ratio / Last | 3.260 / 2.933 |
| Dimension (W x L x H) | 652 x 1,910 x 1,065 MM. |
| Wheel Base | 1,286 MM. | |
| Ground Clearance | 172 MM. | |
| Seat Height | 776 MM. | |
| Caster / Trail Space | 25 Degree / 88 MM. | |
| Dry Weight | 115 Kgs. | |
| Suspension | Front | Telescopic |
| Rear | Monoshock | |
| Brake Type | Front | Disc Brake, Disc Plate Size 276 MM. |
| Rear | Disc Brake, Disc Plate Size 220 MM. | |
| Tyre Size | Front | 80 / 90 - 17 M/C 44P (Tubeless) |
| Rear | 100 / 80 - 17 M/C 52P (Tubeless) | |
| Battery | MF Size 12 V. - 5 Ah | |
| Fuel Tank Capacity | 10 Litrs | |
| Fuel Type | Unleaded Gasoline Octane 91 Up | |
Honda PHantom
| Engine | 4 Stroke, Single OHC, Air Cooled |
| Cylinder Capacity | 197.9 CC. |
| Bore x Stroke | 63.5 x 62.2 MM. |
| Engine Start Type | Electric Start |
| Compression Ratio | 9.0 : 1 |
| Ignition | CDI |
| Transmission | 6 Speed |
| Standard Spark Plug | DPR8EA-9 (NGK) or X24EPR-U9 (DENSO) |
| Dimension (W x L x H) | 775 x 2,256 x 1,085 MM. |
| Seat Height | 699 MM. |
| Caster / Trail | 31 Degree / 117 MM. |
| Wheel Base | 1,505 MM. | |
| Dry Weight | 140.0 Kgs. | |
| Suspension | Front | Telecospic |
| Rear | Dual Rear Shock Absorbers | |
| Break Type | Front | Disc Brake (Dual Piston Caliper) |
| Rear | Disc Brake (Dual Piston Caliper) | |
| Tyre Size | Front | 90 / 90 - 17 M/C 49P (Tubeless) |
| Rear | 130 / 90 - 15 M/C 66P (Tubeless) | |
| Battery | Dry Battery 12 V. - 2.5 Ah | |
| Fuel Tank Capacity | 11.2 Litrs | |
| Fuel Type | Unleaded Gasoline Octane 91 Up | |
FYI, Per Statcounter
you are the
-th visitor to our site since the beginning of
this year.
© 2002-2009 :: Sam Automotive Group :: All rights reserved :: Email: thai4x4@gmail.com ::
